Enviroflo Engineering Retrofit Pulse Jet Filter

A Scottish Quarry recently approached Enviroflo Engineering with a view to replacing an old reverse air filter serving their Asphalt Plant. Following a site survey Enviroflo determined that although the body of the filter and the ductwork system was severely corroded, the existing hopper was basically sound.

Enviroflo designed a pulse jet filter body to retrofit onto the existing hopper, retaining the existing materials handling systems. The filter was designed for a gas flow of up to 59,500 m3/h at temperatures up to 185 oC.

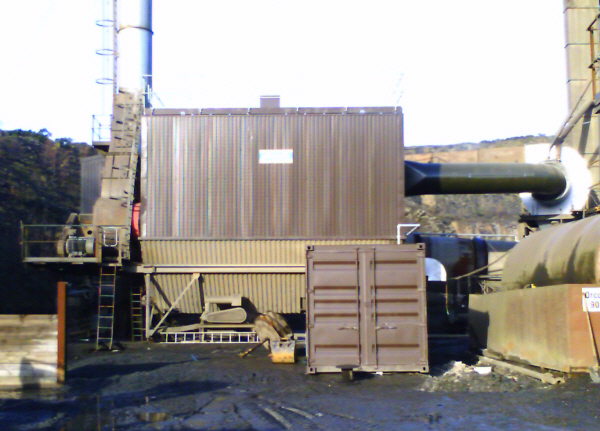

Replacement Pulse Jet Bagfilter at Croy Quarry

The installation also included a replacement skimmer, ductwork, a containerised air compressor and a new control panel.
